STB OB van
Vehicle was supplied an all-in-one truck basis, that could enable all the equipment including cable drums and cameras to be transported in the same van. There was designed a special storage area so that no equipment boxes will not be carried in the operational area. We find solution to accommodate up to 18 cameras with production in HD 1080i, but with capability of SD output at the same time. The truck was intended for entertainment programmes, so the equipment had to accommodate large screens and be suitable for stage use.

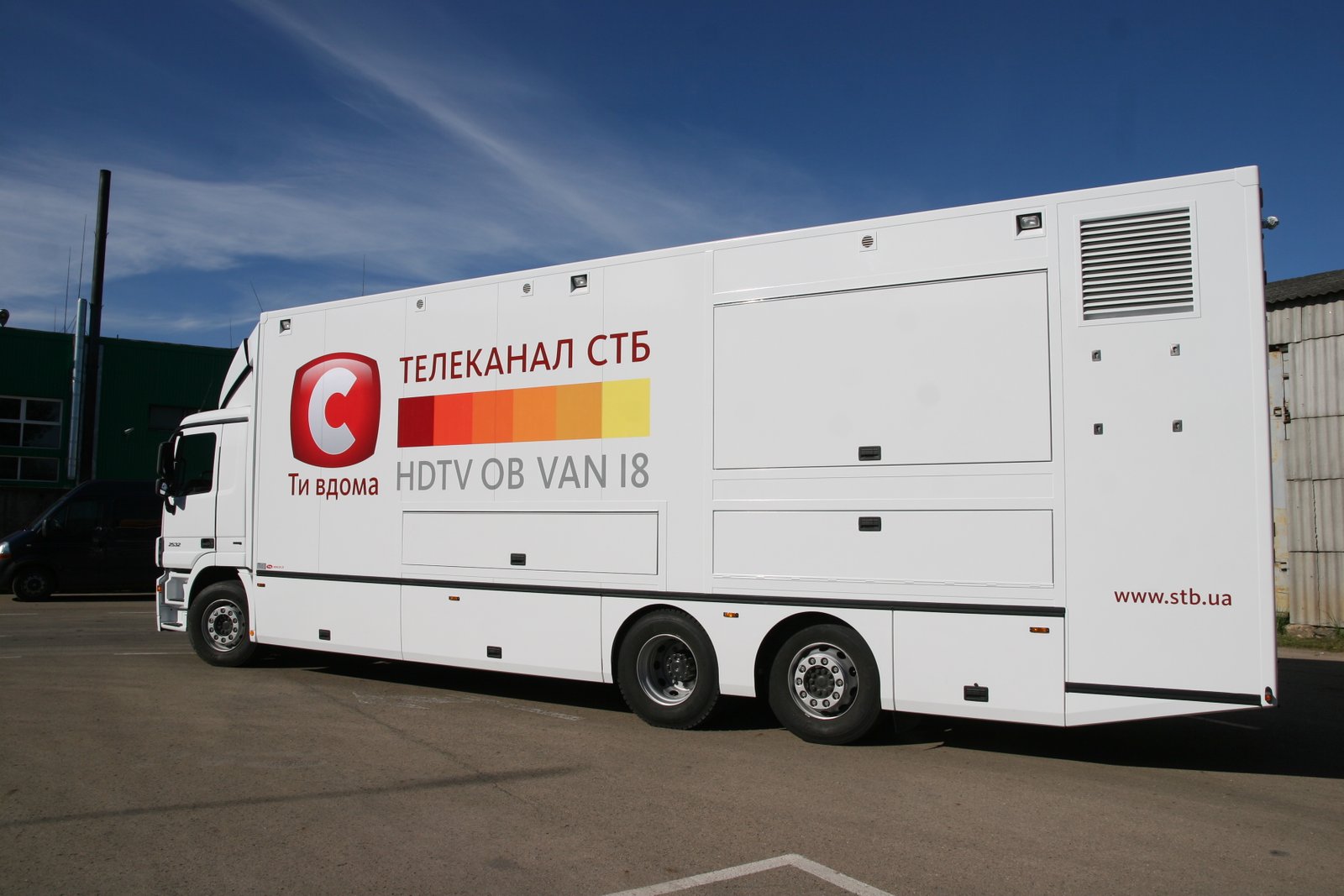

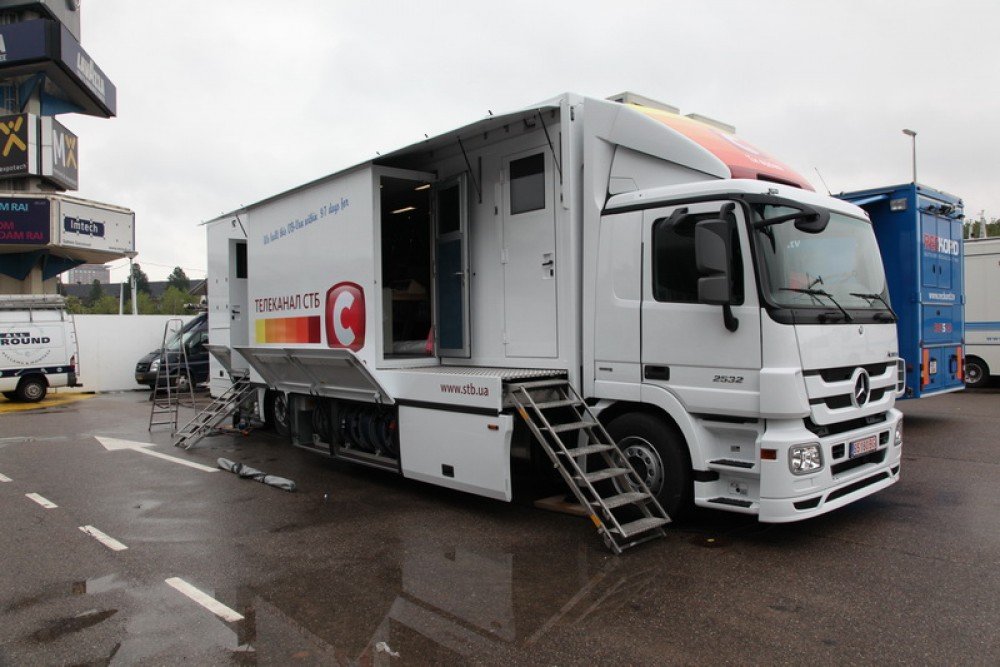

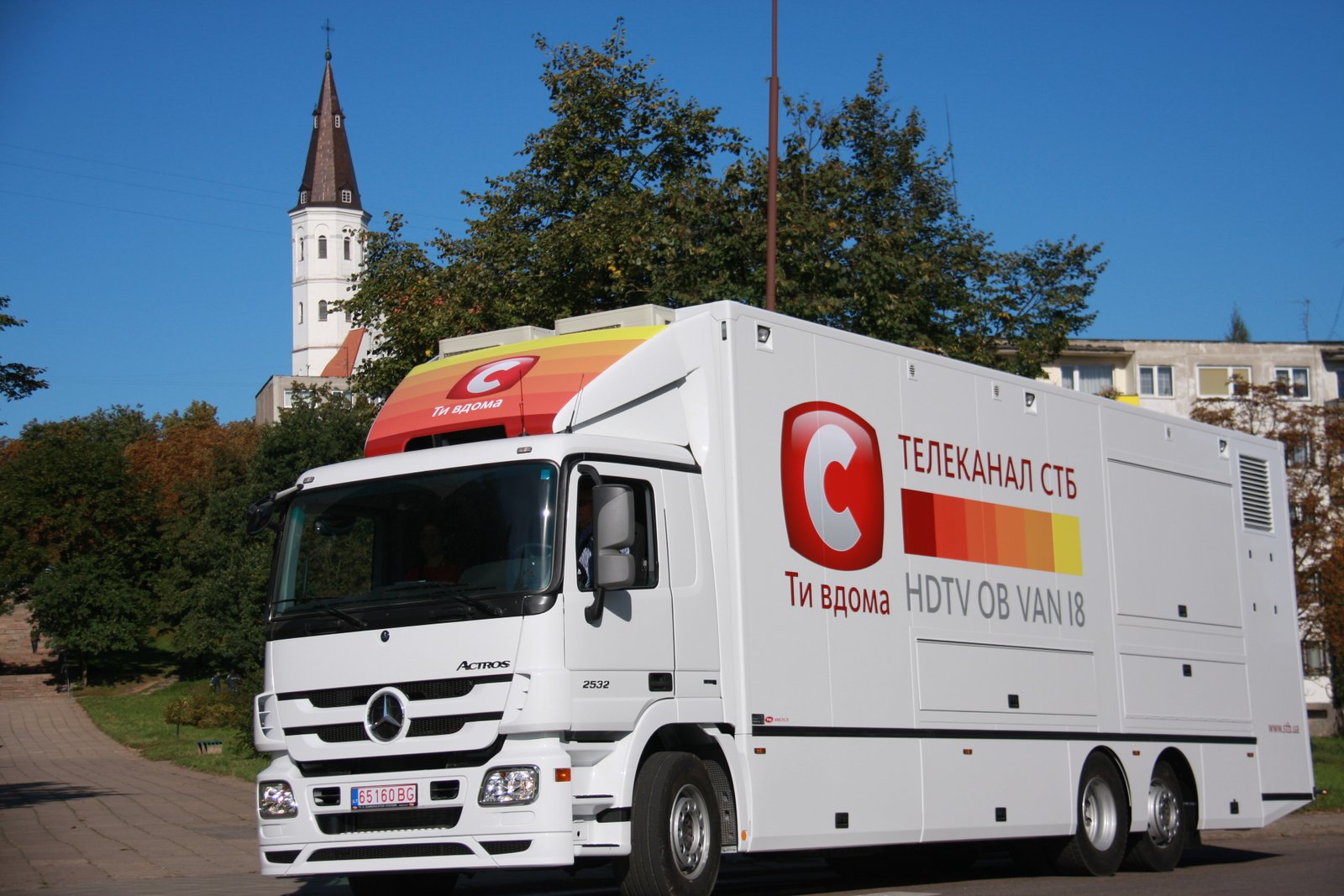

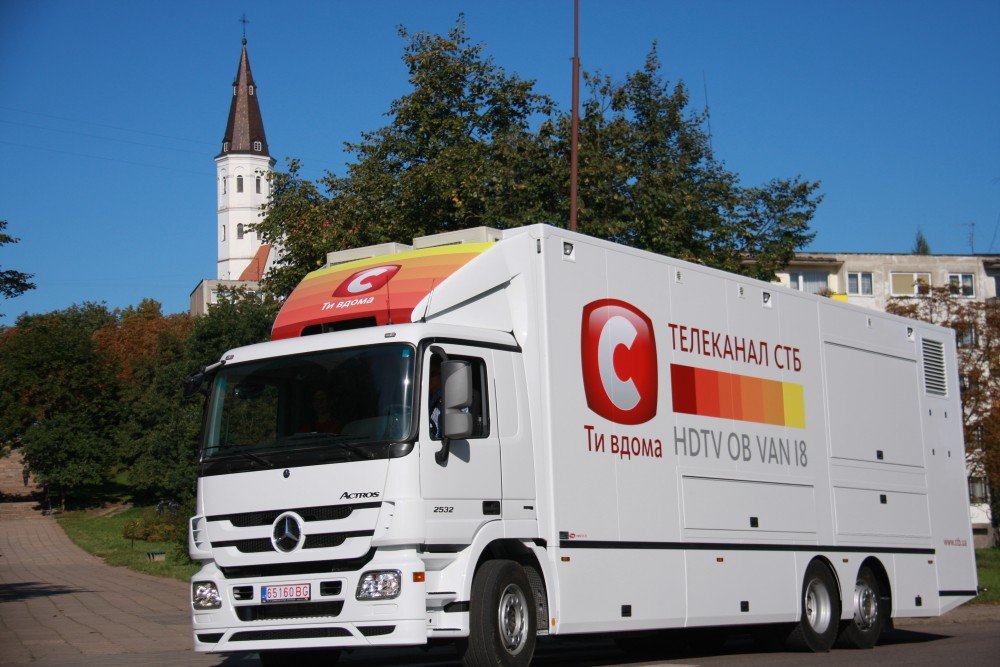

Truck is based on a Mercedes ACTROS 2532L chassis and its width can be increased from 2.5 to 3.5m for live productions. The coachwork was built at the TVC factory in Lithuania, with assistance from some other local specialists. The interior of the vehicle is divided into four sections —three to accommodate production and engineering staff, the fourth for storage. The body structure built with excellent thermal insulation because of the harsh winter temperatures in this part of the world. Then, for the summer temperatures it has an effective air conditioning system. TVC main challenge was the time of this project — four-and-half months from contract signing to delivery.
Technical Synopsis
Video
Up to 18 Sony Cameras HSC300PK
SuperSloMo Cameras on customer Request
Wireless Camera on customer Request
Connectors on Cameras, CCUs and Cables: Fischer Triax
Lenses from Canon, all Focal Lengths available

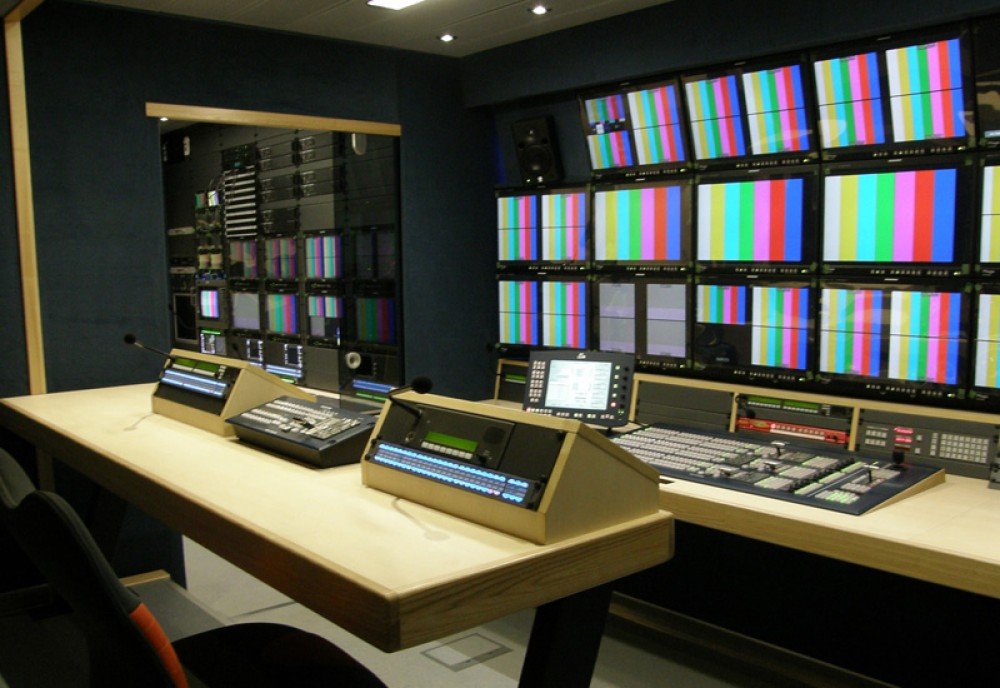

Vision Mixer Snell Kahuna, 40in, 2.5 ME
Character generator on customers Request

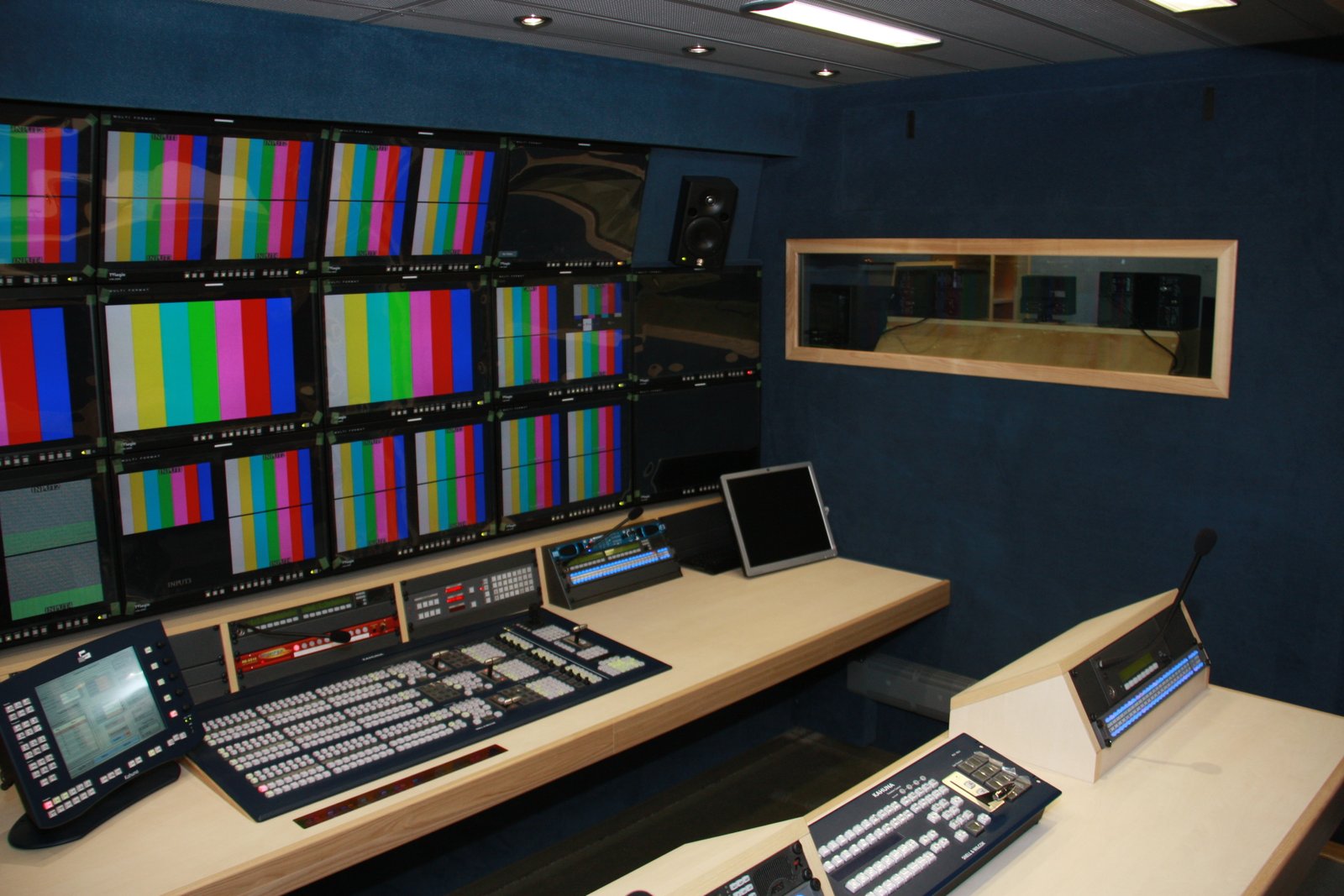

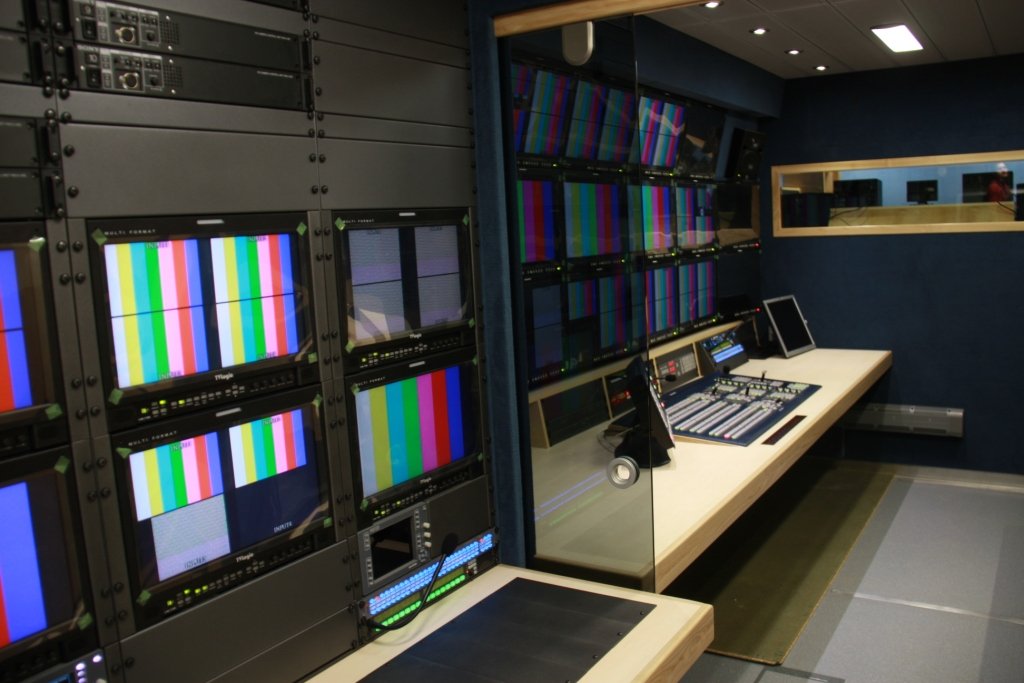

Monitor Wall with TV Logic LSDs with Image Video HD Quad Split processor
Up to 4x HDCAM on customers Request
Two Video servers with monitoring ( GW-K2)
Digital Glue: Snell
Video matrix: Snell 128x128
AUDIO
Lawo \\\"mc2 56 HD\\\" (16+16+16)
Monitoring with KLEIN & HUMMEL and Yamaha
Audio Matrix Lawo
Audio server Instant Replay 2 360Syst
INTERCOM:
Matrix: Riedel 128 port
Wireless intercom interface and belt packs Riedel ACROBAT Cell Controller
Couch Built:
Weight: 26t
Length: 12m
Height: 3,95m
Width (stowed): 2,55m
Width (expanded): 3,5m

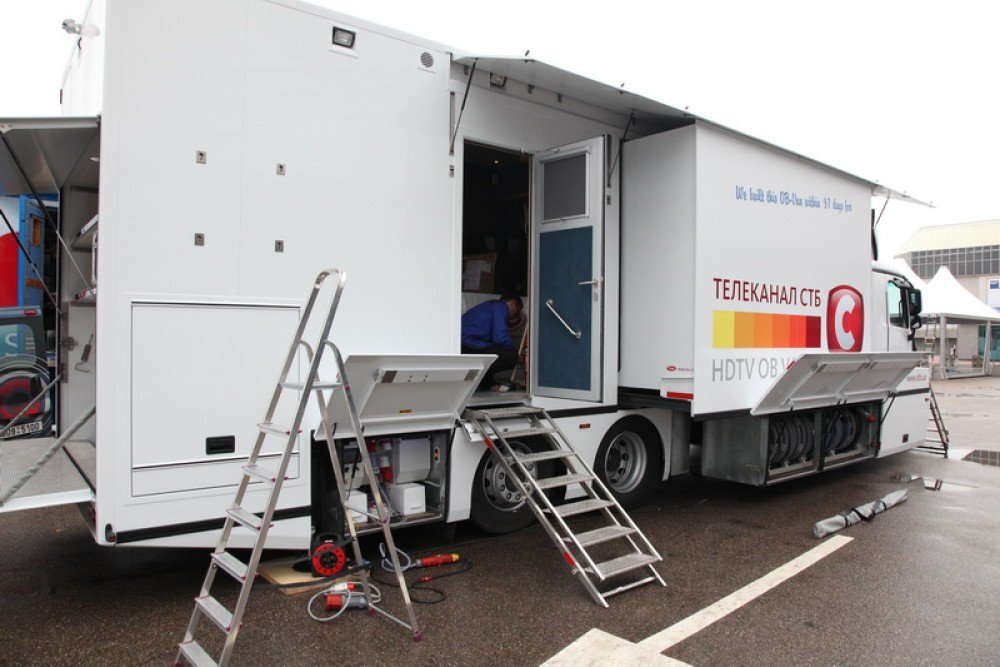

28 motorized drums
20kWA UPS
